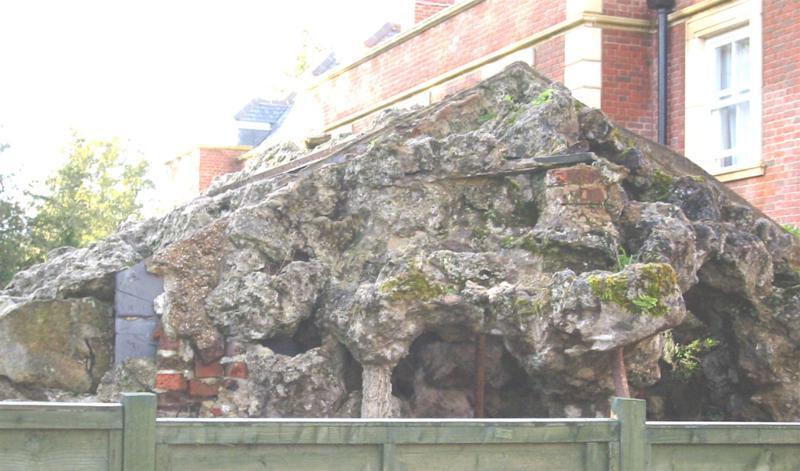

1: The Fernery, fenced off from the public

Because of the dangerous predicament of the structure, the Fernery was fenced off from the public areas of the garden

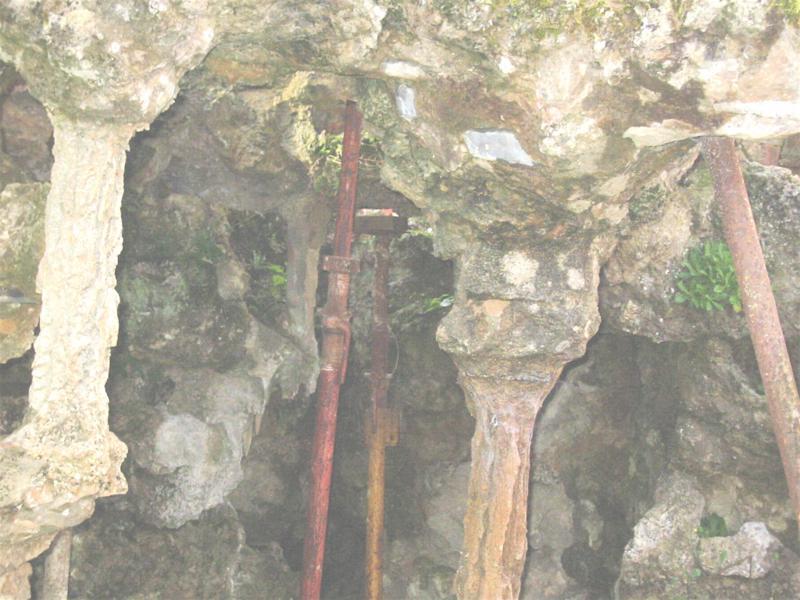

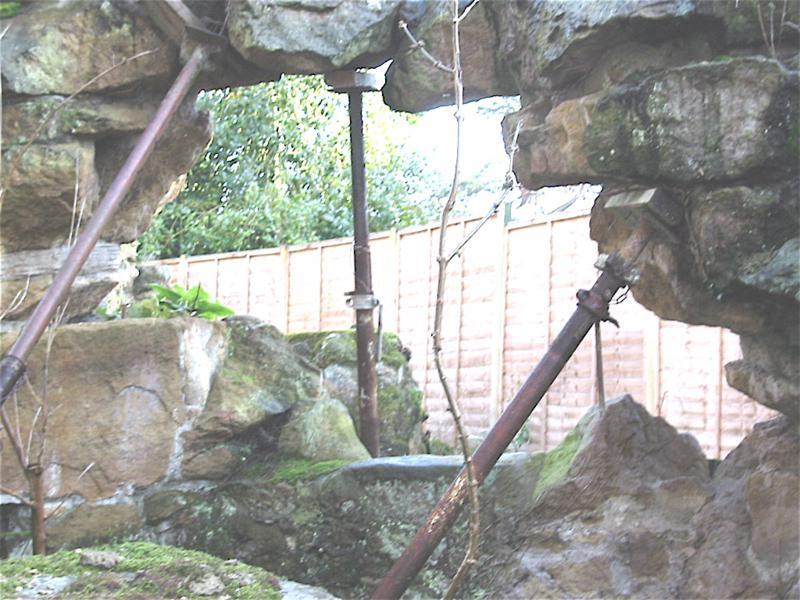

2: Temporary supports to the ceiling

Temporary Acrow supports had been used to support the ceiling. They had been there for at least 15 years

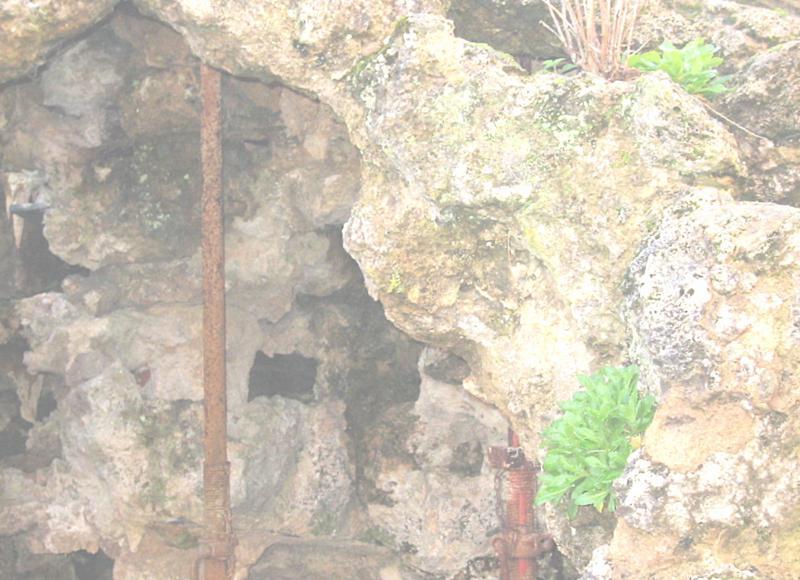

3: Temporary roof supports

As per previous photo

4: Temporary supports to Pulham rockwork

At the back of the Fernery was another area of Pulham rockwork, constructed of part natural local stone and Pulhamite render rockwork, blended together to make the typical massive Pulhamesque rock forms

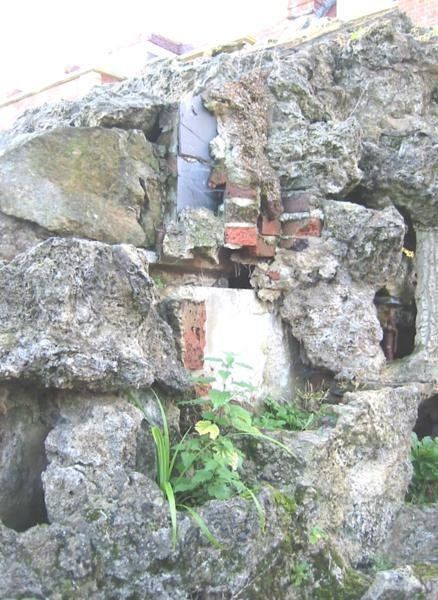

5: Typical construction method

Following the removal of a dense curtain of vegetation (see photo 4) we carried out extensive structural repairs to the core brickwork followed by the re-rendering and re-modelling of the faux stonework and rockwork

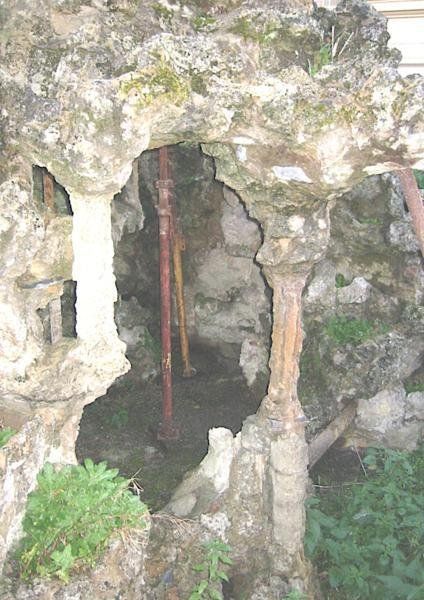

6: Stalactite repair

This photo shows our first trial repair and renovation to one of the Fernery stalactites. (it is the white one on the left)

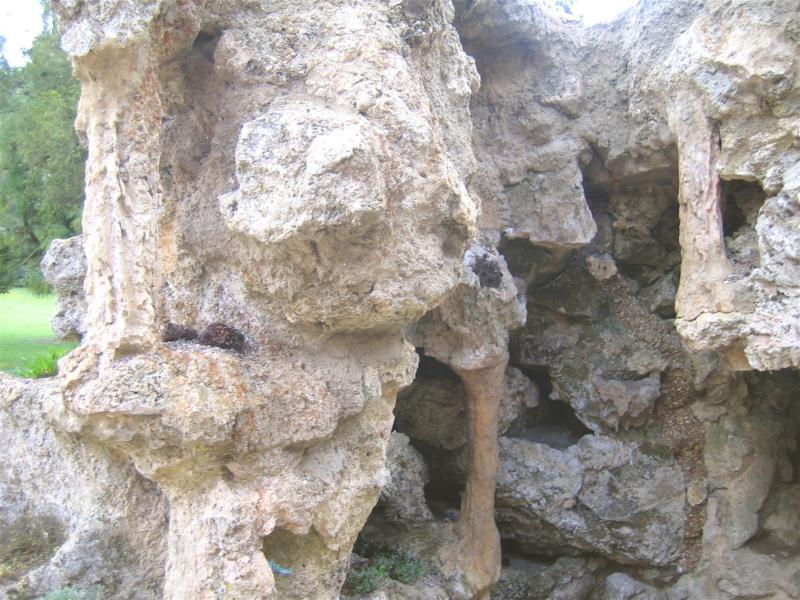

7: Renovated Fernery (detail)

It was decided to remove some areas of the damaged ceiling to open up the space. In this photo we can see repaired stalactites and repaired areas of damaged tufa

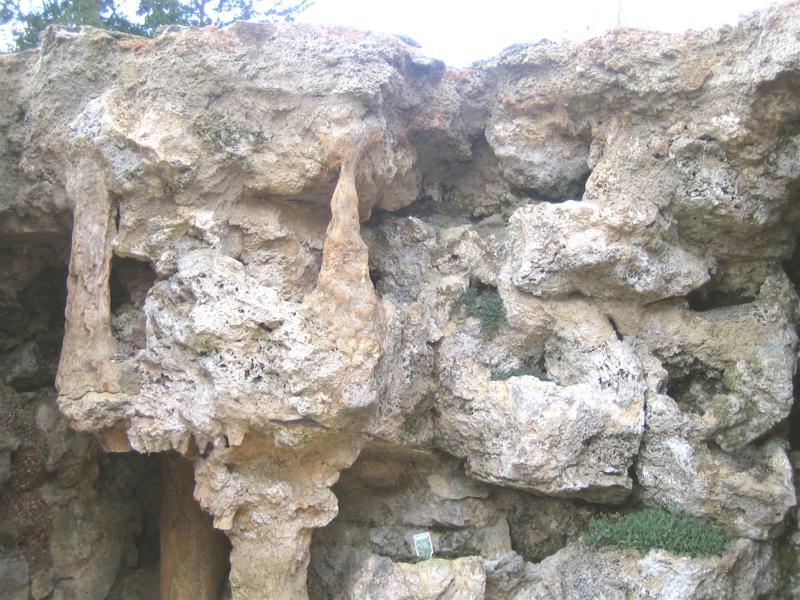

8: Renovated Fernery (detail)

Another shot of the renovated areas. With the dangerous ceiling removed, the feature became, in effect, a horseshoe shaped open grotto-like space.

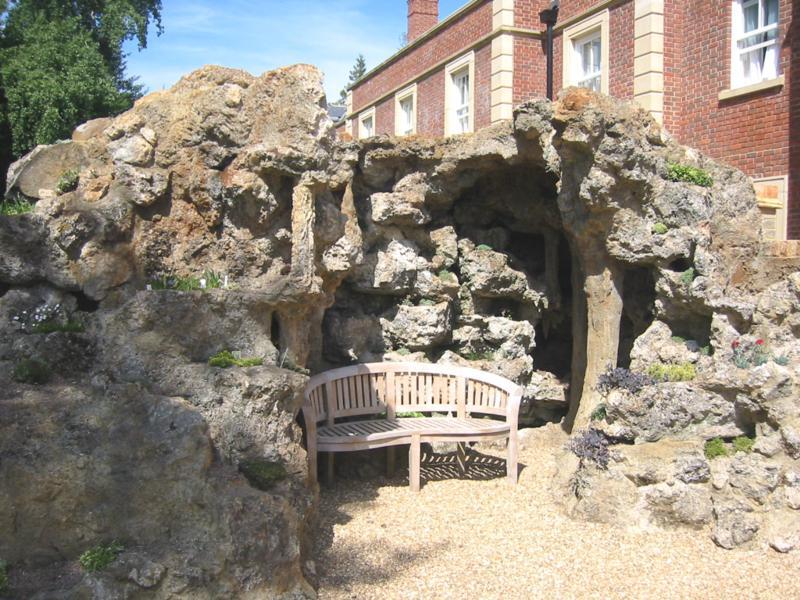

9: General view of the finished renovation

With the removal of the fence, the Fernery/grotto was connected back to the rest of the garden. An oak seat was set within the feature, and it now provides a quiet contemplative space for guests of the conference centre.

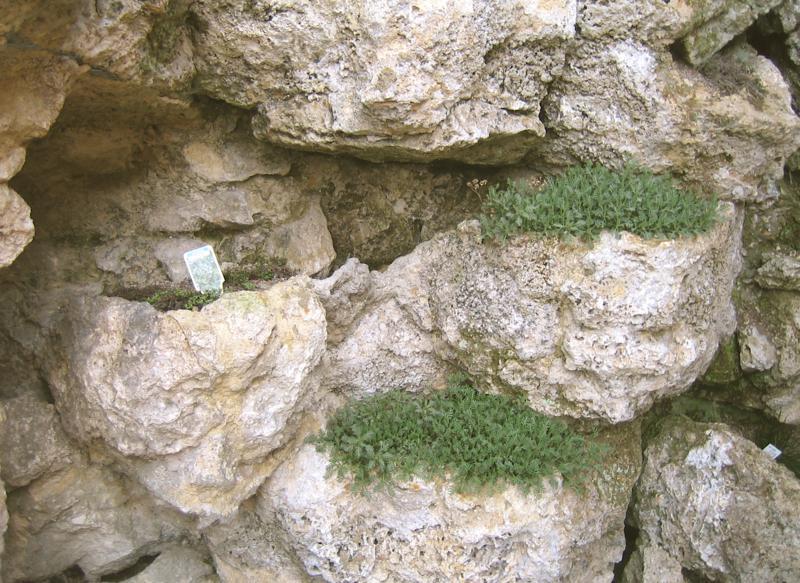

10: Re-stocking the planting pockets

Virginia Heinze of English Heritage managed to find a contemporary planting schedule for the Fernery/grotto, and it was subsequently re-stocked with small Alpines.

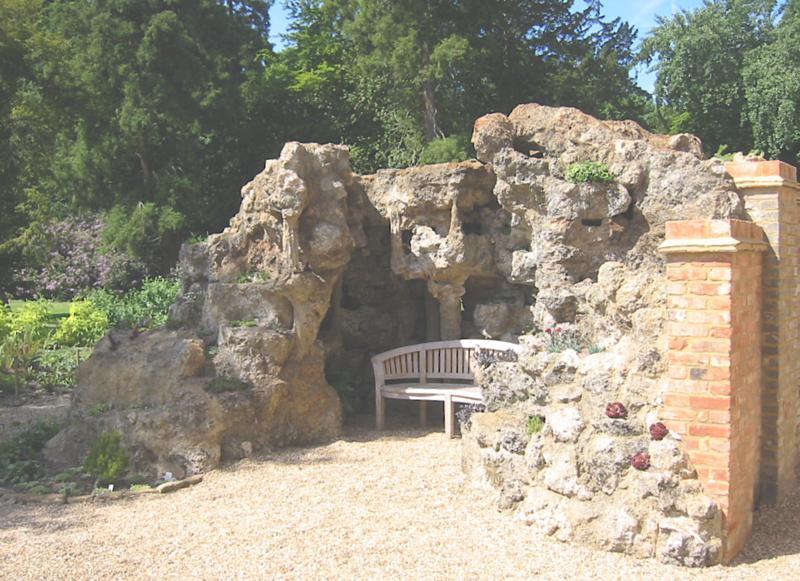

11: General view of the finished renovation

This photo shows the rear brick wall, which had to be rebuilt as part of our works. It originally formed part of the building which completely housed the Fernery/grotto. We decided to retain it, repair it and cap it off at a height of 2m.

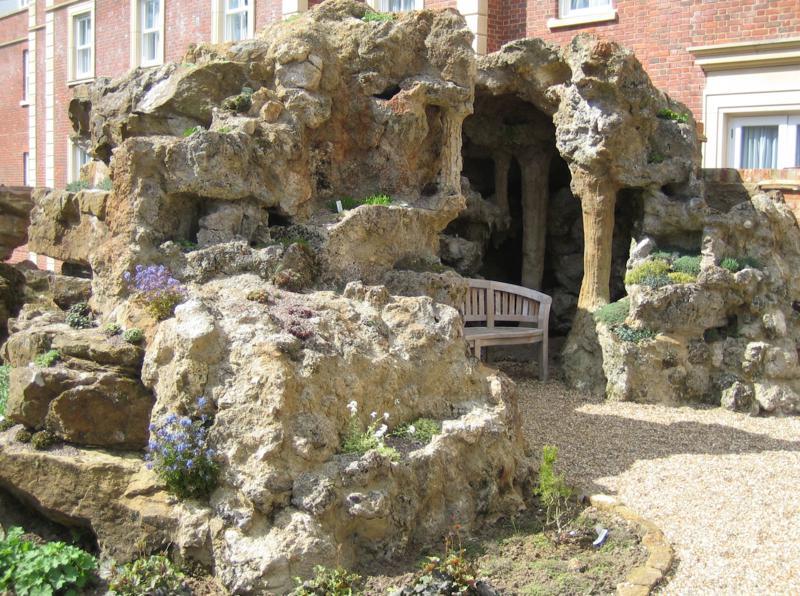

12: General View of the fully renovated feature

To the left of this photo you can pick out the Pulhamite rockwork (see photo 4), which forms the back elevation to the fernery/grotto. In the foreground you can see the newly re-stocked Alpine planting.

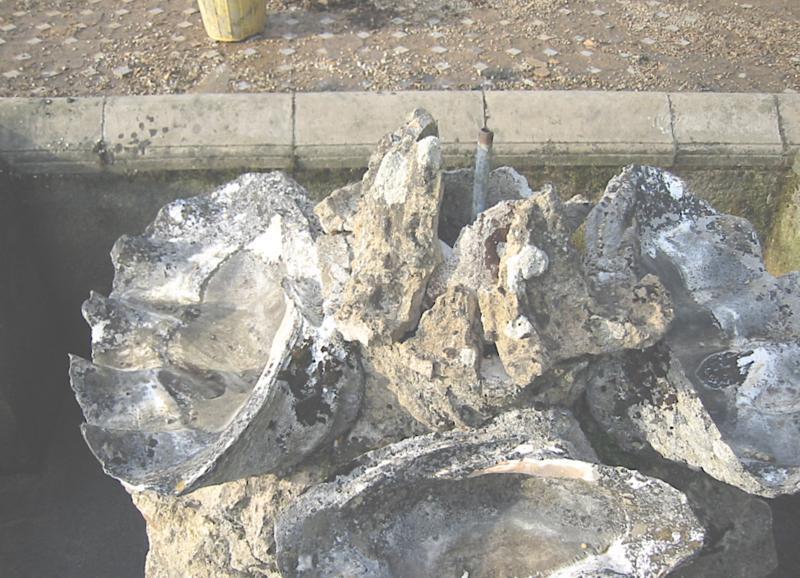

13: Damage to head of water feaure

We were asked to restore the top section of the water feature. It was presumed that it had originally had some form of statue or figurine as the water source

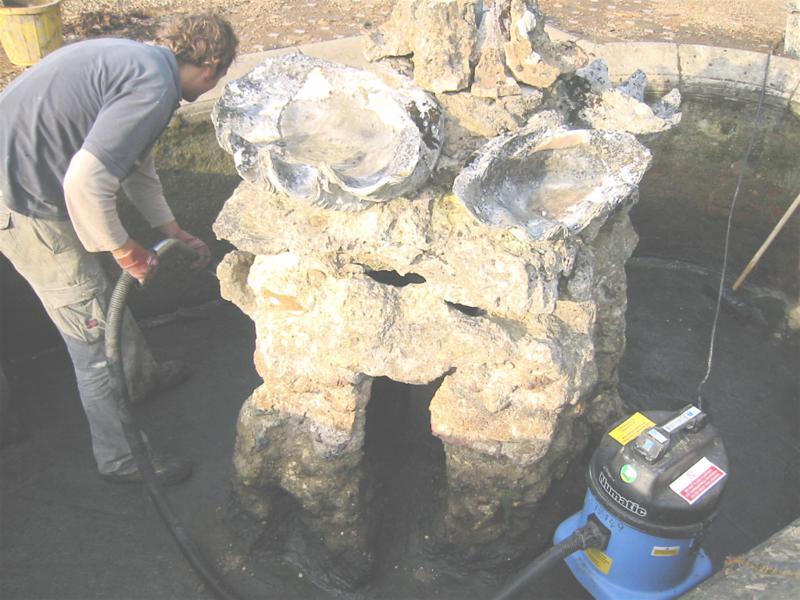

14: Lower pool repairs

The lower pool leaked, and had been filled in with gravel as a health & safety measure. We removed all the gravel, and cleaned the pool walls to check for signs of cracking in the walls.

15: Lower pool repairs

Once the pool was cleaned, we inspected the rendered walls and floor and found a number of cracks. it was decided to completely re-render the structure with a waterproof render

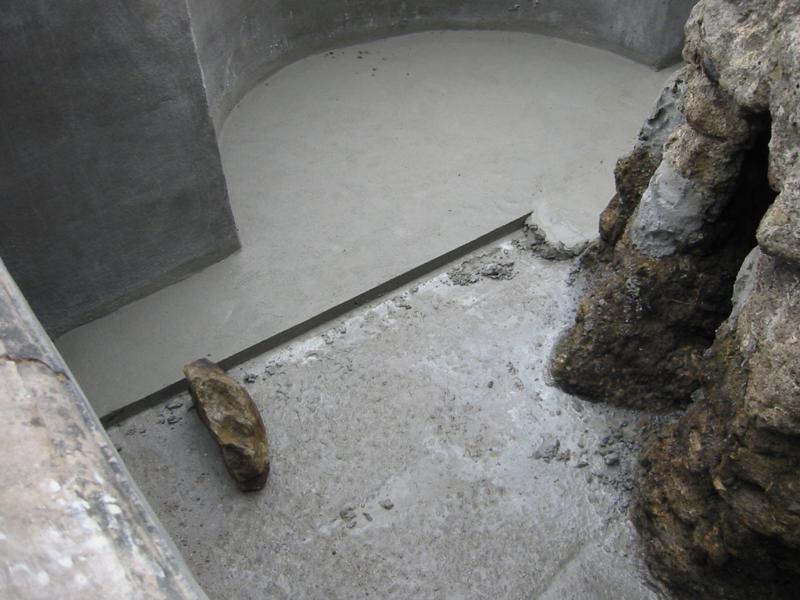

16: Lower pool repairs

This photo shows work in progress on the new waterproof-render floor

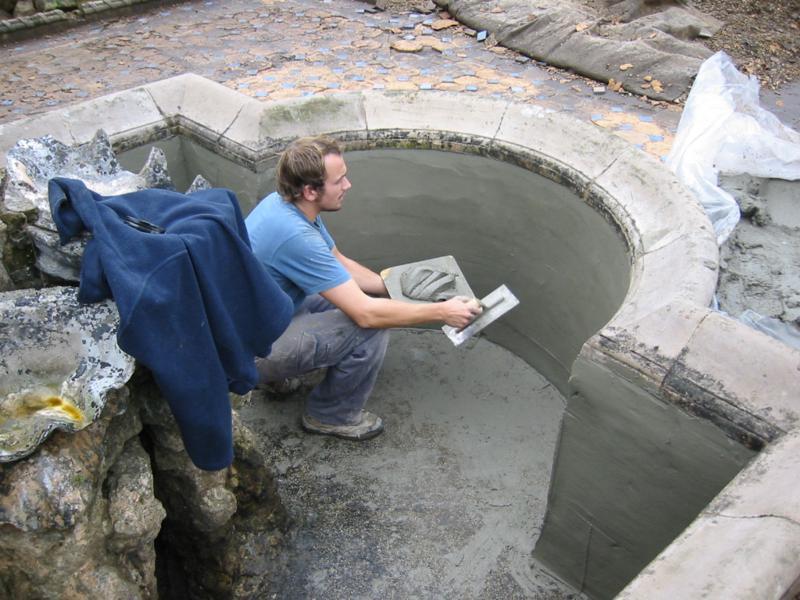

17: Lower pool repairs

This photo shows work in progress on the new waterproof-render walls

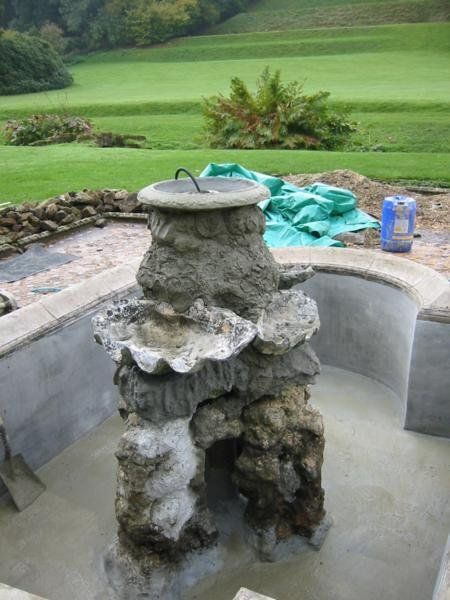

18: Repairs to tufa and shell water feature

The water feature was constructed of real and faux tufa on a brick clinker 3 legged column. It had 3 large clam shells which served as pools. This photo shows repairs to the faux tufa above the clam shells, and the installation of the top shallow basin, which would form the base for the figurine

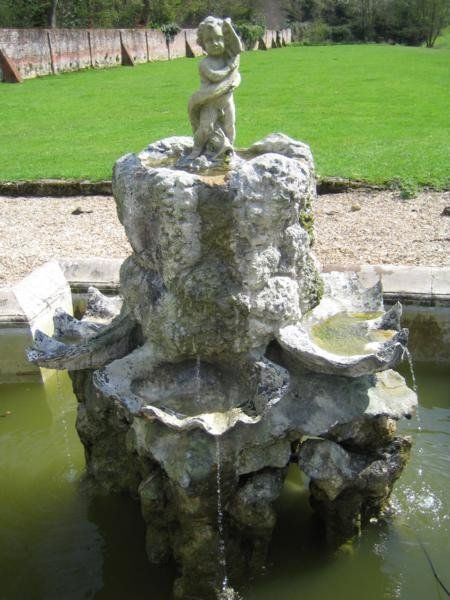

19: The finished renovation

We found a figurine of a water-baby holding a fish, which was ideal for the top of the water feature. We drilled out the figurine to allow water to discharge from the fish's mouth.
